GE Dishwasher Float Switch Replacement Guide

Introduction

GE dishwashers use a float switch to help control the water level during the fill cycle. If the float switch stops working properly, the dishwasher may fail to fill with water, overfill, or stop during operation.

Replacing the float switch is usually a straightforward repair that can restore proper water level control and allow the dishwasher to run normally again.

What This Means

Inside the dishwasher tub is a small float that rises as water enters the appliance. When the water reaches the correct level, the float activates the float switch underneath the dishwasher.

The float switch then signals the dishwasher to stop filling with water.

If the switch fails electrically or becomes damaged, the dishwasher may not detect the correct water level. This can cause filling problems or prevent the dishwasher from starting.

Tools Needed

Most GE float switch replacements require only basic tools.

Common tools include:

• Phillips screwdriver
• Flashlight
• Needle-nose pliers
• Multimeter (optional for testing)

These tools help access the switch and disconnect the wiring connections.

Step 1: Disconnect Power

Always disconnect electrical power before starting the repair.

You can do this by:

• Unplugging the dishwasher from the outlet
• Turning off the dishwasher circuit breaker

This prevents the risk of electrical shock while working on the appliance.

Step 2: Remove the Lower Access Panel

The float switch is typically located underneath the dishwasher tub.

To access it:

Locate the lower access panel at the bottom front of the dishwasher.
Remove the screws holding the panel in place.
Carefully remove the panel to expose the components underneath.

Some GE models may also have a thin insulation panel behind the outer cover.

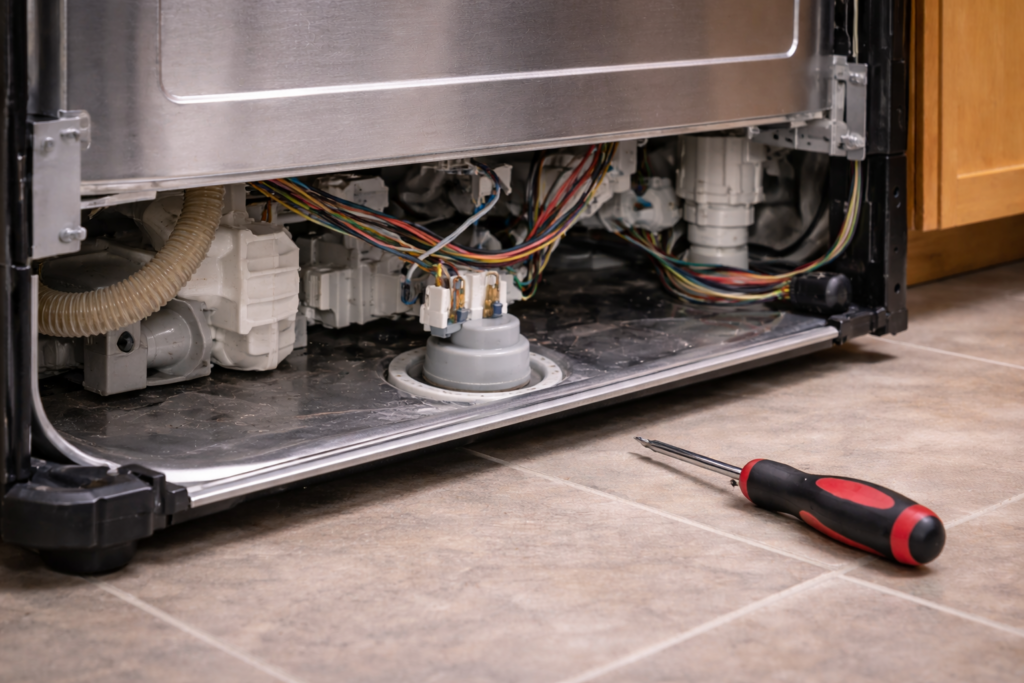

Step 3: Locate the Float Switch

The float switch sits beneath the float assembly inside the dishwasher.

It is usually mounted to the underside of the tub and connected to two electrical wires.

A small actuator lever on the switch responds when the float inside the dishwasher rises.

Step 4: Disconnect the Wiring

Once the switch is visible, disconnect the wiring connectors attached to the switch terminals.

Pull the connectors gently using pliers if necessary, taking care not to pull on the wires themselves.

This separates the switch from the dishwasher wiring system.

Step 5: Remove the Old Float Switch

Most GE float switches are secured with either a mounting screw or a plastic clip.

To remove the switch:

• Remove the mounting screw or release the retaining clip
• Slide the switch out of its bracket
• Note the original orientation before installing the new part

Keeping the orientation the same helps ensure the float activates the switch correctly.

Step 6: Install the Replacement Switch

Position the new float switch in the same location as the original.

Then:

• Secure the switch with the mounting screw or clip
• Reconnect the electrical connectors
• Confirm the actuator moves freely when the float is lifted

Proper movement ensures the switch activates at the correct water level.

Step 7: Reassemble the Dishwasher

Once the new switch is installed:

Reattach the lower access panel.
Tighten the mounting screws.
Restore electrical power to the dishwasher.

Run a short wash cycle to confirm that the dishwasher fills and stops filling correctly.
